    1 pedal foot switch

1 Pedal Foot Switch

Quick Details

Product Name: 1 Pedal Foot Switch
Place of Origin: Shandong, China (Mainland)
Brand Name: Newheek
Model Number: F01
Protection Level: IP68
Max. Current: 10A
Max. Voltage: 500V
Protection Grade: IP68 IEC/EN60529
Mechanical Life: 50 000 000 times above
Electric Life: 300000 times
Insulation Resistance: 100MΩ above under 500VDCtesing
Dielectric Withstand Voltage: 2000VAC 1 minute
Contact Resistance: 50MΩbelow (first)
Environmental Humidity: 45%~85% RH
Environmental Temperature: -25℃~+70℃
Material: ABC Plastic



Application
(1) All kinds of medical instruments

Laser scalpel, B-mode ultrasound, clap bed, gastrointestinal machine, erect machine, medical bed, dental equipment, ophthalmology optometry equipment

(2) Light industrial machinery

Sewing machine, ironing equipment, shoe, textile machinery

(3) Manufacturing equipment

Glue dispenser, welding machine, assembly line, electronic manufacturing equipment

(4) Instrumentation equipment

Projector, surveying instrument, office equipment, check tester, airport baggage transportation system, storage system, parcel sorting system, three-dimensional parking lot

Features
Adopt retartant, intensive, chemical resistance engineering plastic made, it can make clear by medical thimerosal.

Split joint type, it easy to make duplex or multi joint.

Inner adopt KACON/OMRON micro switch and gold alloy contacts that competely sealed in the housing to ensure waterproof, dustproof, oilproof reach to IP68 (IEC/EN60529)

Mechanical life of 30,000,000 times above and electrical life of 200,000 times above.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine

PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.



Detail diagram

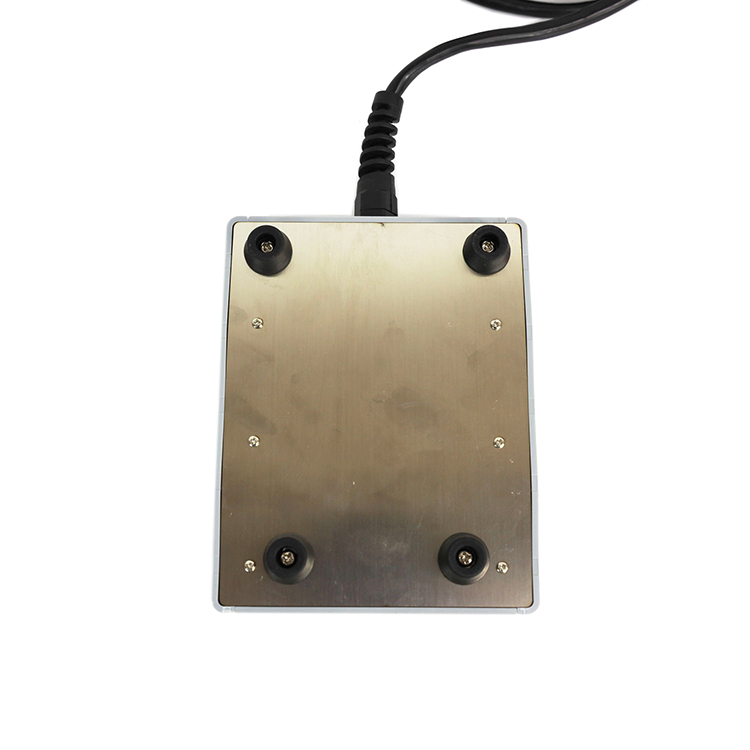

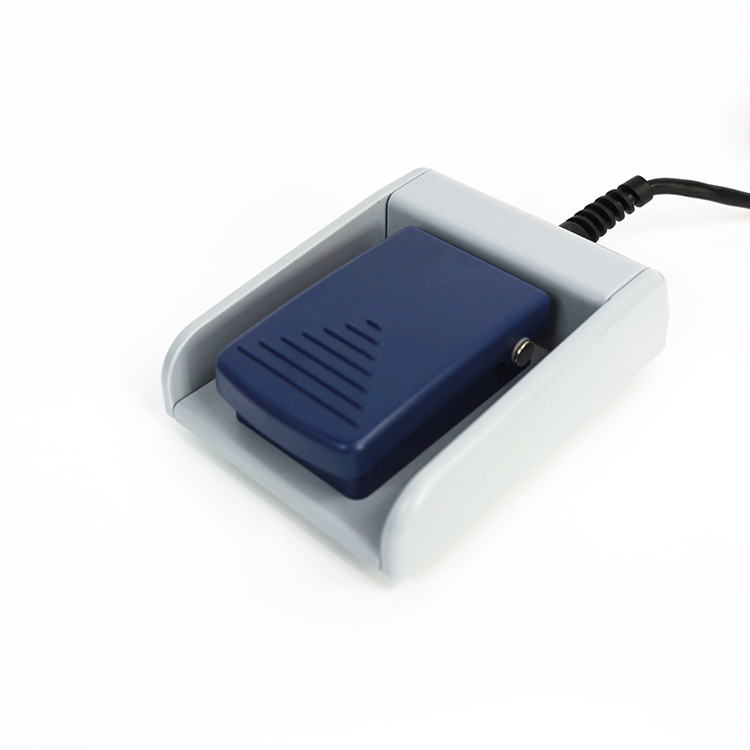

Picture of Single Foot Control Switch F01 Type



Specifications Single Foot Control Switch F01 Type

x-ray foot optical switch Specifications



Configuration Single Foot Control Switch F01 Type

x-ray foot optical switch Configuration



Our Service

Original manufacturer of  x- ray machine accessories hand switch and foot switch for more than 16 years.

√ Customers could find all kinds of x-ray machine parts here.
√ Offer on line technological support.
√ Promise super product quality with best price and service.
√ Support the third part inspection before delivery.
√ Ensure the shortest delivery time.



Contact us , if you need to order Single Foot Control Switch F01 Type
Email : info@xrayswitch.com
Hot Line: +86 536 8882360



FAQ       The common problems on the Single Foot Control Switch F01 Type

1.     Q: What is the main application of foot switch?

A : All kinds of medical equipment. Such as x-ray machine, fluoroscopy table, laser operation knife, B ultrasound, dental equipment, ophthalmology optometry equipment etc.

2.     Q: Can you accept customize foot switch?

A : Yes. Please feel free to send us your detail requirement by email here. You will get our reply in 24 hours.

3.     Q: Can we print our logo/website/company name  on   products?

A : Yes, please advise the size and Pantone Code of the logo.

4.     Q: What’s the lead time for regular order?

A : 3-5 days for order quantity lower than 50pc foot switch; For more quantity, usually 15 days.

5.     Q: Can I get a discount?

A : Yes, for the order quantity more than 50 pcs foot switch, please contact us to get the best price.

6.     Q: What is the quality warranty?

A : We offer 12 months warranty after the foot switch is delivered.
