Core Functions of Flat Panel Detector Protective Case

The core function of the flat panel detector protective case is to provide all-round protection for medical flat panel detectors while taking into account ease of use. The specific features are as follows:

Core Physical Protection
‌Shock & Drop Buffering‌: With rigid shell structure and corner cushioning design, it absorbs impact when the detector accidentally falls, preventing damage to precision core components like internal imaging chips and scintillators.

‌Scratch & Abrasion Resistance‌: It isolates hard external objects from the detector surface, avoiding scratches on the body and detection panel caused by keys, metal parts and other hard objects during daily handling and use, so as not to affect imaging accuracy.

‌Dust & Splash Proof‌: The enclosed shell blocks dust and liquid splashes from entering the device interior, adapting to complex scenarios with heavy dust and liquid exposure such as industrial NDT and clinical radiology, extending the service life of the equipment.
‌Collision & Squeeze Prevention‌: It protects the detector from being squeezed and collided by other heavy objects during transportation and storage, preventing body deformation and panel denting.

Usage & Adaptation Assistance
‌Quick Release & Locking‌: The protective case with a sliding locking structure allows fast loading and unloading of the detector, and firmly locks the device during use to prevent slipping and displacement.

‌Installation Scenario Adaptation‌: The protective case is pre-reserved with precise positioning structures, which can be directly adapted to supporting tooling such as radiography stands and mobile trolleys, no additional modification to the detector body is required.

‌Portable Protection‌: Some protective cases with a built-in carry handle allow direct transportation of the detector under protection, no extra protective case is needed, greatly improving the convenience of on-site operation.

Special Scenario Adaptation
‌Radiation & Contamination Isolation‌: In medical scenarios, the protective case isolates the detection panel from external contaminants, facilitating daily disinfection and cleaning to avoid cross-infection.

‌Customized Protection‌: The shell can be customized according to the dimensions of different flat panel detector models, fitting the device contour perfectly without blocking the detection area, ports and heat dissipation holes, and will not affect normal imaging and heat dissipation of the equipment.

Our company has self-produced models of flat panel detectors：

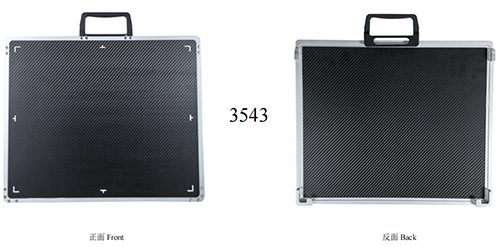

Newheek-3543

Overall dimension （mm）	404*480*24
Mounting dimension（mm）	386.1*462*15.43
Handle size（mm）	132*63

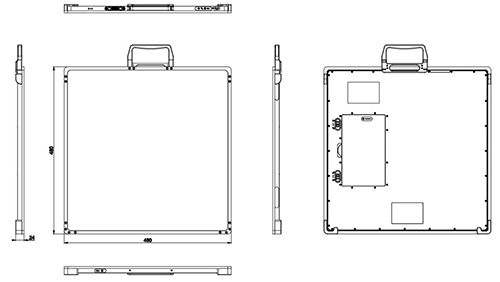

Newheek-3543

Overall dimension （mm）	480*480*24
Mounting dimension（mm）	462*462*15.43
Handle size（mm）	132*63

If you show interest in our products, please contact us for a full quotation and technical specification sheet.
