Medical CCD Camera Image Signal Processor

Medical CCD Camera Image Signal Processor

Characters

The functions of image processor can be divided into four parts: image collection, image check, image post process, parameters setting and adjustment. It could use three monitors at the same time to display images, which are used for real-time displaying current collected images, or for browsing the stored image.

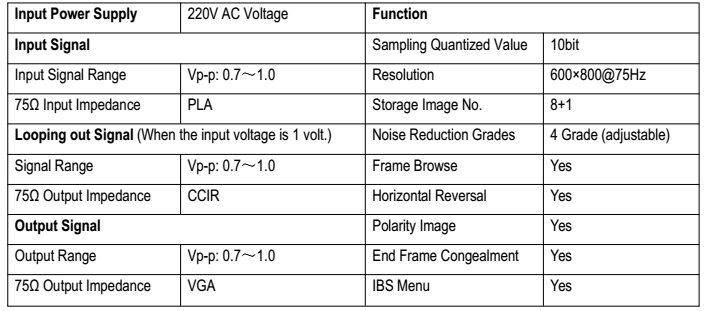

Technical Parameters

Application

Adopt 10 bit quantization for AD and DA part. The high quantization accuracy reduces the loss of quantification in the process of image modulus transformation and increases image fidelity degree. The video input of this product adopts standard PAL interlaced TV signal, and the output also adopts standard PAL interlaced output, which is suitable for all kinds of medical gray monitors use that who are compatible with PAL signals. And it is the important assembly of image intensifier TV system.

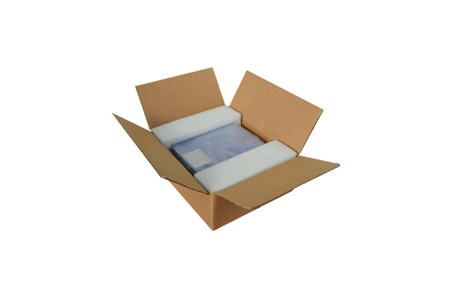

Detail Pictures
