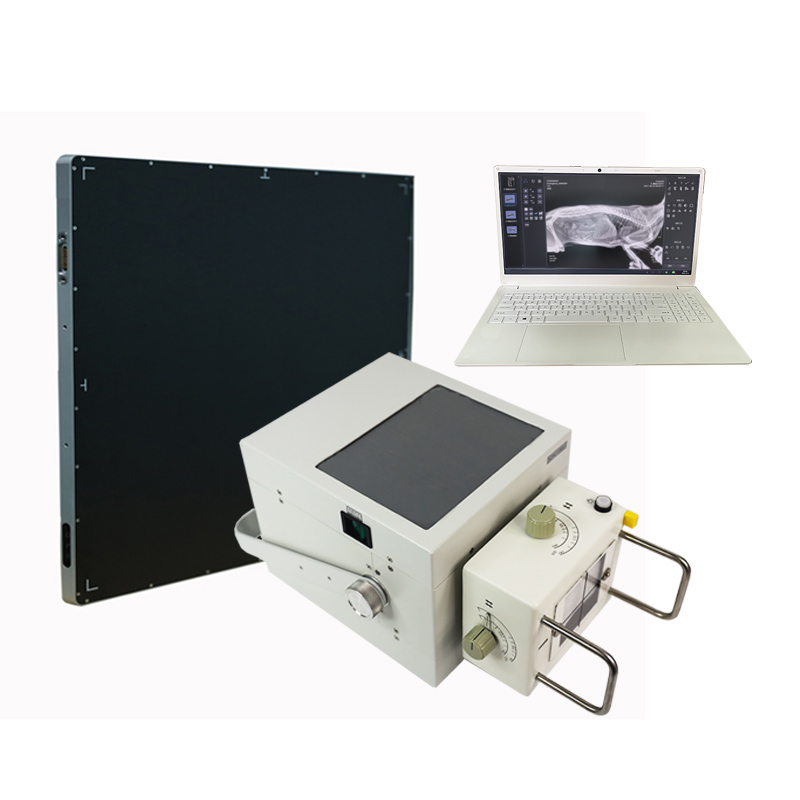

NK3543S wired flat panel detector

NK3543S wired flat panel detector uses a wired flat panel detector as an X-ray image acquisition device to realize the digital conversion process of X-ray signals. Flat panel detectors are mainly used with X-ray machines. It can display images directly on the computer, replacing traditional hand-washed film, making it more convenient to use. Flat panel detectors are widely used in different fields such as medical and veterinary applications

Detector type: Amorphous silicon

Scintillator type: cesium iodide

Image size (mm): 350×430

Pixel matrix: 2560 × 3072

Pixel pitch (μm): 139

AD conversion (bit): 16

Spatial resolution (lp/mm): 3.6

Collection time: 1s

X-ray working range: 40-150kv

Data interface: GBE

Trigger method: AED / soft trigger / external trigger

Dimensions (mm): 384 x 460 x 14.8

Weight (kg): 2.8

Power (W): 20

Adapter input: 100-240V, 50-60Hz AC

Adapter output: 24V DC, 2.5A

Shell material: carbon plate, aluminum alloy

Working environment: 10-35ºC, 30-85% RH
