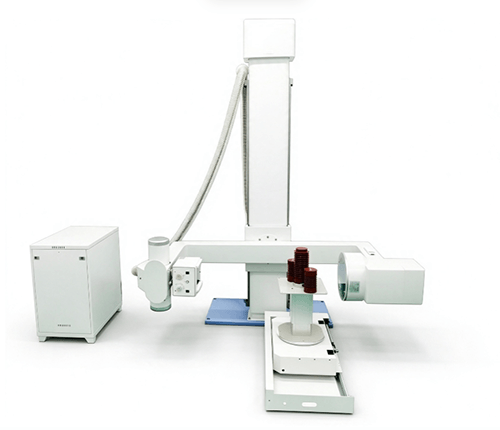

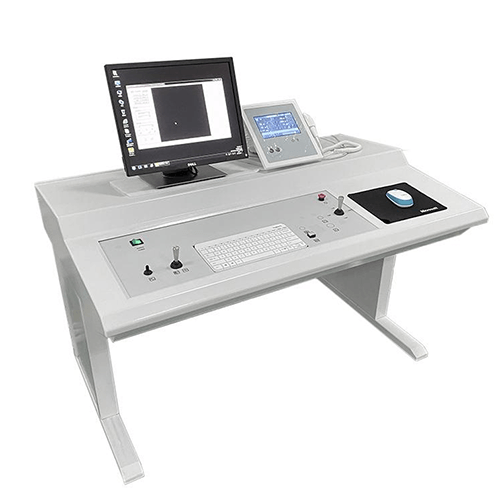

NKX569 Digital industrial X-ray machine

NKX569 Digital Industrial X-ray Fluoroscopy System is a professional non-destructive testing (NDT) equipment integrating fluoroscopy and radiography functions. It adopts digital high-frequency high-voltage generator, independent X-ray tube head and high-performance image intensifier, realizing real-time dynamic imaging and static radiographic shooting. Widely used for internal defect inspection of castings, weld seams, auto parts, metal components to detect cracks, pores, shrinkage cavities and inclusions.



























This system supports separate parameter adjustment for fluoroscopy and radiography, with stable long-time continuous working capacity. Optional rotary test bench and industrial analysis software help customers complete efficient and accurate industrial flaw detection on production line.

Item	Parameters
Power supply conditions	Three phase AC 380V ±22V, power capacity ≥ 30KVA
High voltage generator	Digital high-frequency high-voltage generator: ≥ 50KW or 30KW Fluoroscopy Mode Tube voltage: manual 40~110kV, automatic 40~110kV adjustable Tube current: manual 0.3~6mA, automatic 0.3~6mA adjustable Tube voltage regulation range: ≥40–110kV Tube current regulation range: ≥0.3–6mA, continuously adjustable Radiography Mode Photographic tube voltage regulation range: 40–125kV Photographic tube current adjustment range: 50mA–500mA Fluoroscopy and radiography parameters are independently adjustable
X-ray tube assembly	High frequency independent head, non-combined X-ray tube head, supports long-time continuous operation
Imaging system	Image intensifier ≥9 inch metal screen, center resolution ≥48 lp/mm, whole machine resolution ≥20 LP/cm
Digital camera	Type: black and white, line by line scanning Photosensitive device: CCD, 2/3″ A/D:12bit Resolution:1024×1024
Test bench	Disassembly rotary test bench (optional)
Software	Integrated industrial software (optional)

Core Advantages

Real-time Fluoroscopy + Radiography Dual Functions
Support dynamic real-time fluoroscopy observation and static radiographic image capture. Parameters for fluoroscopy and radiography can be adjusted separately, meeting diverse NDT testing requirements.

High-frequency Independent X-ray Tube Head
Separate high-frequency tube head design, not combined type. Stable performance and support continuous long-time running, suitable for workshop batch inspection.

Clear High-resolution Imaging
Equipped with 9-inch metal screen image intensifier, center resolution up to 48 lp/mm, matched with 1024×1024 CCD digital camera. Clearly show tiny internal defects inside metal workpieces.

Wide Adjustable Range of Voltage & Current
Wide adjustable tube voltage and current range, compatible with inspection of different thickness metal workpieces, from thin castings to thick metal components.

Customizable Configuration
Rotary disassembly test bench and professional industrial analysis software are optional. We can configure the system according to your workpiece size and inspection demands.

Application Industries

Casting industry: Detect porosity, shrinkage, sand inclusion and cracks of aluminum, iron, steel castings
Weld inspection: Check weld crack, incomplete penetration, slag inclusion
Auto parts: NDT inspection of automotive metal components
Hardware & machinery parts: Internal defect detection of mechanical metal workpieces

Our Servic

1.Pre-sales: Professional technical consultation, scheme recommendation according to your workpiece and inspection requirement
2.Customization: Equipment configuration customization
3.After-sales: Overseas installation guidance, operation training, long-term technical support
4.Quotation: Send your workpiece material, thickness and inspection requirement, we will provide detailed quotation and technical proposal quickly

Inquiry CTA

Contact us now to get the full datasheet and best quotation for our Digital Industrial X-ray Fluoroscopy NDT System.
