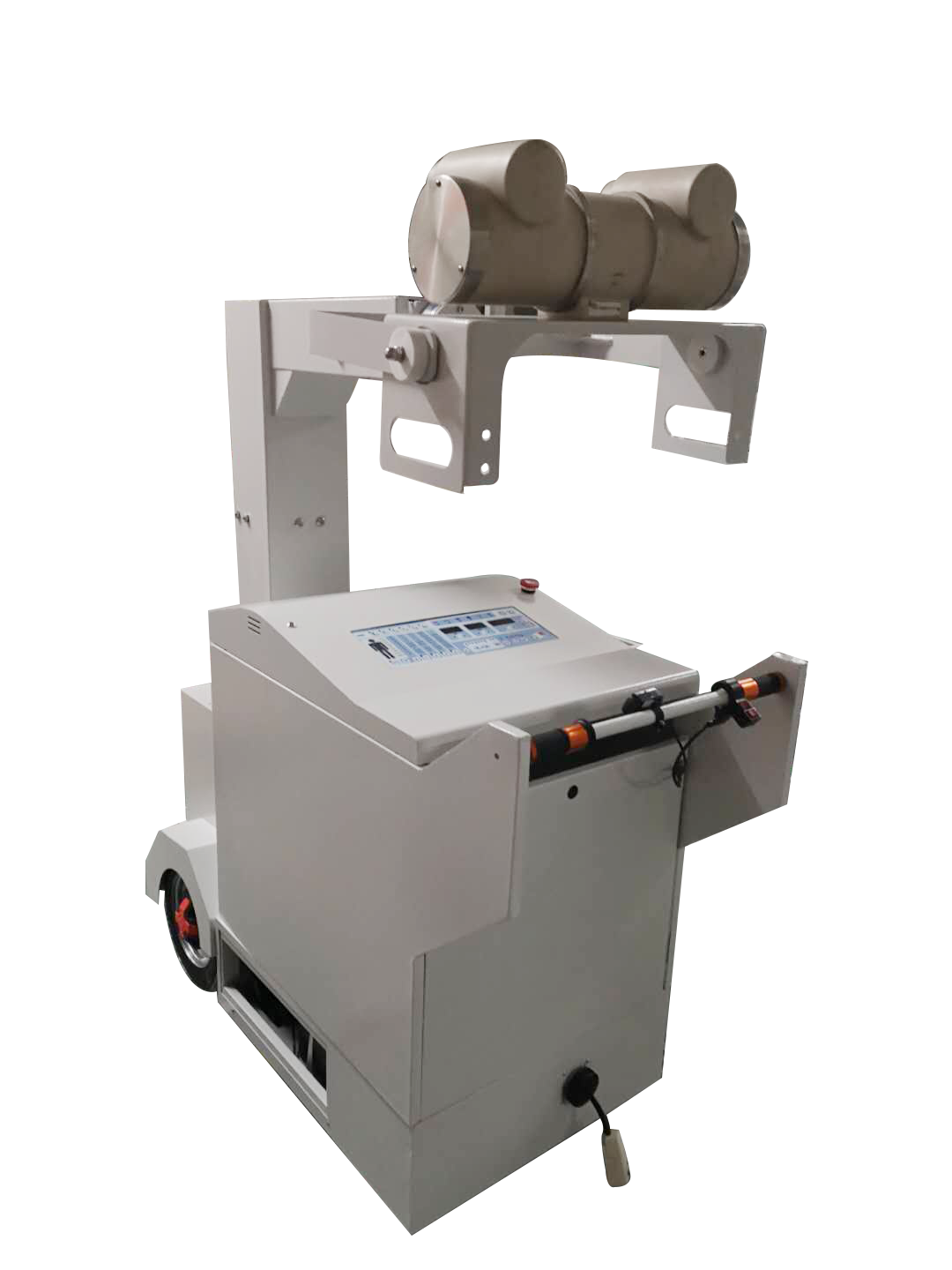

400mA Mobile X-Ray Machine: Portable & Reliable Diagnostic Imaging

Key Features

1. Full-Body Imaging Programs

   Built-in anatomical modes support head, chest, abdomen, spine and extremities, with adjustable parameters for accurate positioning.
2. Precise Radiation Control

   Equipped with a collimator to control the X-ray field, reduce unnecessary exposure and improve image quality.
3. Electric-Assisted Mobility

   Smooth, labor-saving movement for easy transport in narrow wards and busy examination areas.
4. Stable High-Frequency Output

   High-voltage generator and kV closed-loop control ensure consistent, low-noise imaging.
5. Intelligent Operation

   Touchscreen control, dual-core system, wired and wireless hand switches for safe, flexible use.
6. Full Safety Protection

   Exposure interlock, fault alarm, filament preheating and tube temperature protection for stable performance.
7. Practical Design

   Side storage boxes for detectors and accessories; auto-retractable cable to avoid tangling.

Main Technical Specifications

• Power: 220V, 50Hz, 1.5kVA
• Tube voltage: 125kVp (stepless adjustable)
• Tube current: 400mA
• Exposure time: 0.1s–6.3s
• Focus height: 950mm–1850mm
• Rotation: ±90° (column), ±180° (axis)
• Radiation field (1m SID): ≥430mm×430mm

Optional Accessories

• Chest X-ray stand
• Radiography table
• Wireless DR detector (NK4343W)
• Desktop or laptop computer

Applications

Why Choose It

• Portable and easy to operate
• Stable, high-quality imaging
• Low radiation and high safety
• Wide compatibility and strong durability
• Cost-effective for daily clinical use
