      x-ray machine accessories L05 hand switch with LED

L05 Hand Switch


Newheek L05 Hand Switch is hand-held dental switch which has one step control .


Newheek L06 Hand Switch adopts mechanical pressing-shaft drive, and the switch assembly adopts “OMRON” microswitch, with longer working life and higher sensativity.


Newheek L05 Hand Switch is the electric control device, which is used for controlling of electrical signal on-off, photographic accessory and medical x-ray machine’s radiograph exposure.

4、Main Technological Parameters:

(1) using “OMRON” micro switch

(2) ABS plastic shell

(3) mechanical life of 1000000 times

(4) electrical life of 200,000 times

5、Standard Confirguration:

① Hand Switch: 1 Piece

② 3-meter with 3-core spring wire: 1 Piece

③ Certificate: 1 Copy

Optional Confirguration:

The spring wires can be optional assembled from 3-meter with 3-core, 3-meter with 4-core, 6-meter with 3-core, 6-meter with 4-core, 6-meter with 6-core, 10-meter with 3-core. And the spring wire length can be made accroding to the user requirement.

6、Detail Figure:

L05 hand switch

L05 hand switch head

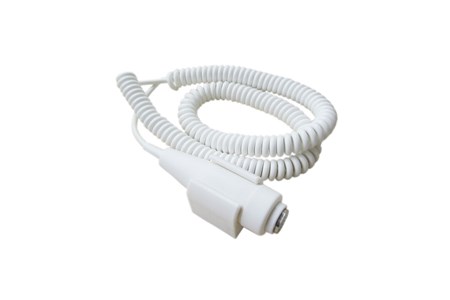

L05 hand switch side
