    x-ray machine accessories L04 switch

L04 Hand Switch

1、Abstruct:

Newheek L04 Hand Switch is hand-held switch which has two stepping-shifts and with fixed trestle. It is switch on when press the knob and swith off when loose the knob. Press knob to the fist step, the shift I is working, press knob completely, the shift II is working, and now the shift I is keeping connection.

2、Construction:

Newheek L04 Hand Switch adopts mechanical pressing-shaft drive, and the switch assembly adopts “OMRON” microswitch, with longer working life and higher sensativity.

3、Application:

Newheek L04 Hand Switch is the electric control device, which is used for controlling of electrical signal on-off, photographic accessory and medical x-ray machine’s radiograph exposure.

4、Main Technological Parameters:

L04 hand switch

The mechanical serive life is 50,000,000 times, and the appliance life is 300,000 times

5、Standard Confirguration:

① Hand Switch: 1 Piece

② 3-meter with 3-core spring wire: 1 Piece

③ Certificate: 1 Copy

Optional Confirguration:

The spring wires can be optional assembled from 3-meter with 3-core, 3-meter with 4-core, 6-meter with 3-core, 6-meter with 4-core, 6-meter with 6-core, 10-meter with 3-core. And the spring wire length can be made accroding to the user requirement.

6、Detail Figure:

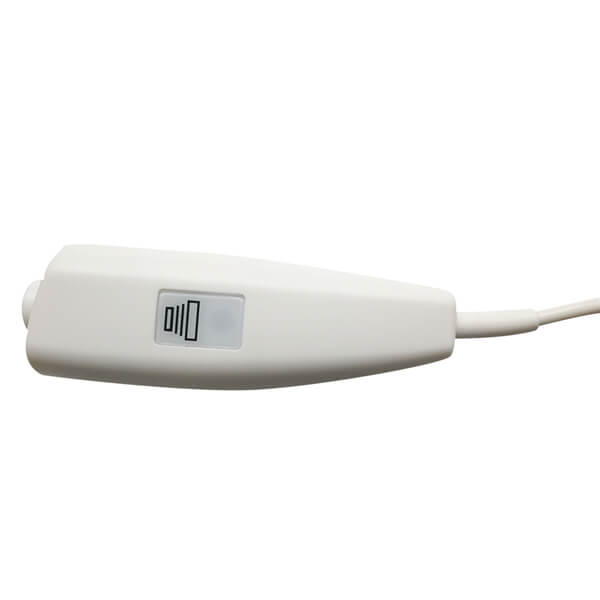

L04 hand switch left

L04 hand switch optical

L04 hand switch packing
