Medical X Ray Diagnostic Equipment-UC arm

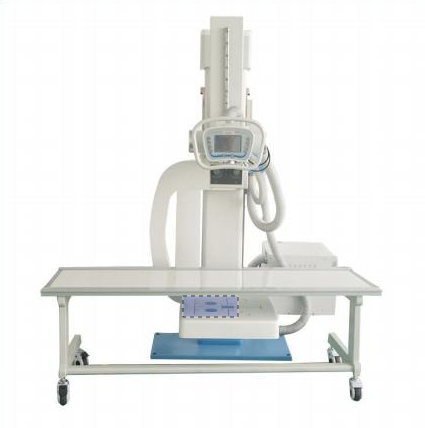

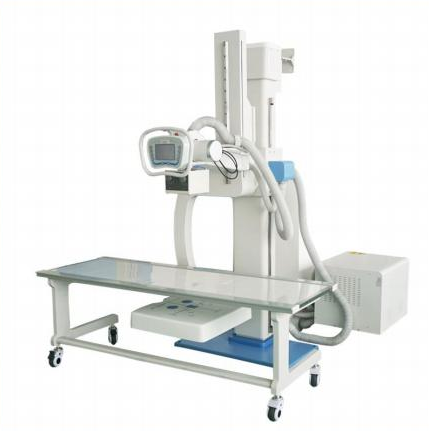

The UC arm is a mechanical frame structure in a digital X-ray imaging (DR) system, consisting of a U-shaped arm and a C-shaped arm connected together. It supports multi-degree-of-freedom electric motion, enabling rapid switching between standing and supine positions and multi-angle imaging. It is commonly used in dynamic DR equipment that integrates fluoroscopy and contrast imaging functions.

Advantages

UC DR with smart outlook, high precise mechanical performance, widely check up body parts. It can automatically to adjust the flat
panel detector height according to actual check up body part.
It can be matched with the different kinds of radiography tables freely. UC ARM with two functions about resetting and rotate protection. It can preset three positions into the machine, and press the threeresetting key the system will move to the positions you preset. When the U arm is at a lower position, it can press the key to rotate it. It will
not rotate. Then run up it to a higher position, it will work. This function is to protect the machine from topple and fall because of the UC arm
touch the ground when it rotates. 。 Super image chain to get perfect image. Special IT image workstation software realizes real time image collect, storage, processing, print and transfer etc function. Adopt a-SI flat panel detector, with stable performance and reduce x ray dose in greatly extent

Specification
