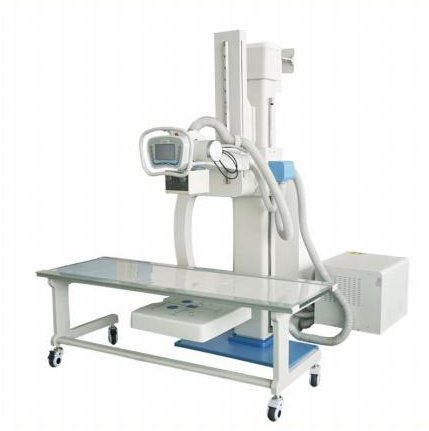

The UC arm is a mechanical frame structure in a digital X-ray imaging (DR) system, consisting of a U-shaped arm and a C-shaped arm connected together. It supports multi-degree-of-freedom electric motion, enabling rapid switching between standing and supine positions and multi-angle imaging. It is commonly used in dynamic DR equipment that integrates fluoroscopy and contrast imaging functions.
| Device Name | Parameter Item | Parameter Specifications |
|---|---|---|
|
UC-arm rack
|
UC arm up and down stroke:
|
1200mm±20mm |
|
The lowest position of UC arm to ground:
|
480mm±20mm | |
|
rotation:
|
0 ° ~90 ° | |
|
Detector rotation:
|
-45 ° ~ +45 ° | |
|
SID stroke:
|
1000mm~1800mm |
