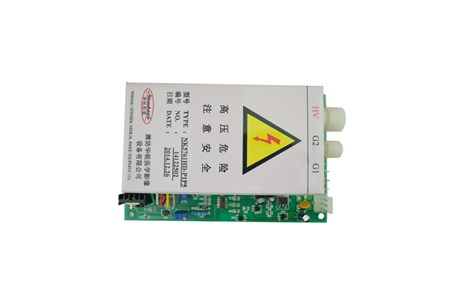

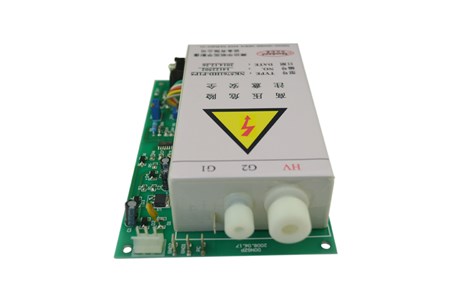

NK5761HD‑P1/5 HV Power Supply for Toshiba E5761HD Image Intensifiers
The NK5761HD‑P1/5 is a dedicated high‑voltage power supply unit designed as a
direct replacement for the original HV power supply used in
Toshiba E5761HD‑P1 / P5 / P9 X‑ray image intensifiers. It matches the original in appearance, input/output specifications, and interface, enabling plug‑and‑play replacement without modification.
This power supply consists of two modules:
- Main power board: installed inside the image intensifier
- Adjusting panel: for parameter tuning and stability control
It offers stable voltage output and reliable performance for clinical fluoroscopy and C‑arm imaging systems.
Core Technical Parameters
- Input: 24V ±1V, 600mA
- G1: 100–200V, adjustable 140V
- G2: 100–900V, adjustable P1 / P2
- G3: 1.0–12kV, adjustable 3kV
- HV: 28–32kV, standard 30kV
- Structure: two‑panel design (main board + adjustment board)
- Application: replacement power supply for Toshiba E5761HD series image intensifiers
Key Advantages
- Perfect replacement for original Toshiba HV power supply
- Stable output and long‑term reliability
- Two‑module structure for easy installation and maintenance
- Compatible with E5761HD‑P1, P5, P9 intensifiers
- Plug‑and‑play, no rewiring required
