NK17SG/SY Wall Mounted Bucky Stand – Summary

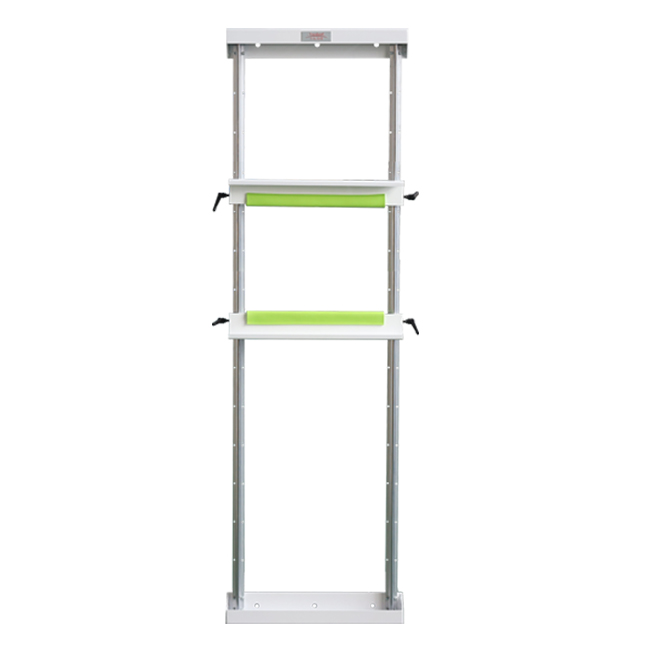

This is a space‑saving wall‑mounted bucky stand for medical X‑ray imaging, made by Newheek with ISO9001 & ISO13485 certifications. It supports cassettes, CR, and DR detectors, and can be turned into a mobile unit with an optional base.
Key Parameters
- Model: NK17SG/SY
- Overall height: 1500mm (customizable up to 1800mm)
- Width: 455mm
- Minimum travel: 1000mm
- Grid: 40Lp/cm, ratio 10:1, focus 180cm
- Compatible with 14×17 / 17×17 cassettes & DR detectors
- Installation: wall‑mounted (suggest 500mm above floor)
Main Advantages
- Compact, space‑saving design
- Easy installation & operation
- Lightweight, low transport cost
- L‑shape rotary handle for easy height locking
- 35mm bucky slot fits most receptors

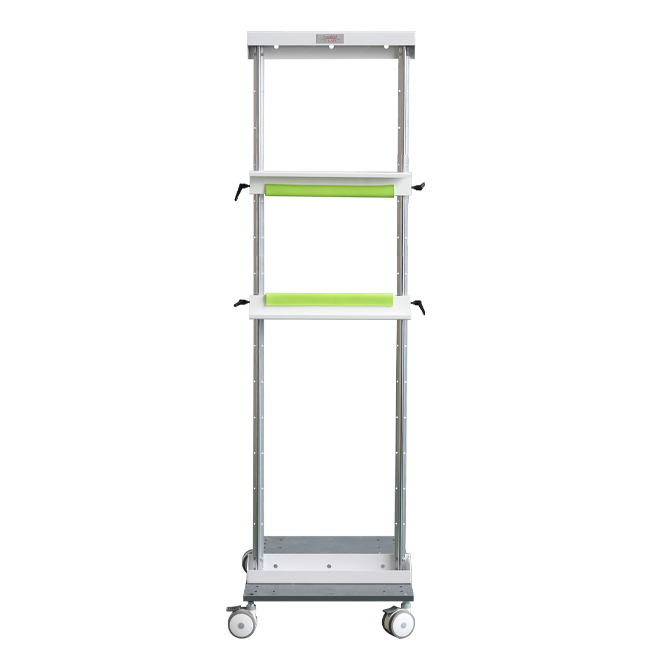

- Optional mobile base (NK17SY)
Manufacturer
Newheek – 16+ years’ experience in X‑ray accessories, with online support, third‑party inspection, and fast delivery.
